應用案例:屏通幫助系統整合夥伴快速實現MQTT





痛點
物聯網時代來臨,萬物皆連網,能夠隨時掌握現場(邊緣端)設備裝置的狀況為高效管理的關鍵.一間知名的系統整合商於環境監控應用採用低功率、高效率傳輸的MQTT,其工程團隊為硬體背景,需額外花費時間及人力進行了解,因此如何快速架構、開發MQTT軟體及雲端設定為其最大的挑戰.



為什麼選擇屏通
- 協議閘道器/人機介面免費內建主流通訊協議(500+),輕鬆連接邊緣設備.
- 免費的編程軟體屏通觸控大師(PM Designer)內建MQTT功能,無需二次開發
- 支援主流雲平台(亞馬遜AWS/微軟Azure/阿里雲/研華WISE-PaaS)
- 可自行視應用情境規劃發送、訂閱主題
- 用戶身分驗證,防止未經授權的用戶端訂閱
- 嚴謹的TLS加密,降低被駭客攻擊的風險



相關產品推薦



邊緣協議閘道器 : ES2系列 "雙網口"邊緣可視化人機介面: IT4系列

"進階型"邊緣可視化人機介面: PT2系列 "基本型"邊緣可視化人機介面: PK2系列



Edge SCADA軟體
詳細規格請洽屏通業務
*不含遠程監控功(不含遠程監控功能)



NEWSLETTER

2022 JANUARY

應用案例:屏通幫助系統整合夥伴快速實現MQTT





最新消息



閘道功能整合邊緣數據智連中控系統

屏通遠見 – PC端即時多設備管理重要廠域資訊不漏接

設備運維方案-在家也能遠程管理PLC程式



痛點
物聯網時代來臨,萬物皆連網,能夠隨時掌握現場(邊緣端)設備裝置的狀況為高效管理的關鍵.一間知名的系統整合商於環境監控應用採用低功率、高效率傳輸的MQTT,其工程團隊為硬體背景,需額外花費時間及人力進行了解,因此如何快速架構、開發MQTT軟體及雲端設定為其最大的挑戰.



為什麼選擇屏通
- 協議閘道器/人機介面免費內建主流通訊協議(500+),輕鬆連接邊緣設備.
- 免費的編程軟體屏通觸控大師(PM Designer)內建MQTT功能,無需二次開發
- 支援主流雲平台(亞馬遜AWS/微軟Azure/阿里雲/研華WISE-PaaS)
- 可自行視應用情境規劃發送、訂閱主題
- 用戶身分驗證,防止未經授權的用戶端訂閱
- 嚴謹的TLS加密,降低被駭客攻擊的風險



相關產品推薦



邊緣協議閘道器 : ES2系列 "雙網口"邊緣可視化人機介面: IT4系列

"進階型"邊緣可視化人機介面: PT2系列 "基本型"邊緣可視化人機介面: PK2系列



Edge SCADA軟體
詳細規格請洽屏通業務
*不含遠程監控功(不含遠程監控功能)

Application Story - Smart Factory : Automated Guided Vehicle (AGV)

HMI ES BOX S-BOX 人機介面 智能盒 邊緣盒 PLC 資料交換
技術文件
12/04/2022

Introduction

    Automated guided vehicles (AGV) are widely used in industrial production to transport goods. Due to the rapid development of smart factories and intelligent warehousing, the AGV system has become indispensable for such projects.

    A traditional manufacturer from southern Taiwan brought in several AGVs for logistics automation. However, years after, they found out the AGVs were only equipped with partially automatic control, which led to additional labor to perform.

    Therefore, under high pressures of cost competitiveness and increasing labor costs, manufacturers need to collaborate AGV with human-machine immediately for efficiency.

AGV-1

    A traditional manufacturer from southern Taiwan brought in several AGVs for logistics automation. However, years after, they found out the AGVs were only equipped with partially automatic control, which led to additional labor to perform.

    Therefore, under high pressures of cost competitiveness and increasing labor costs, manufacturers need to collaborate AGV with human-machine immediately for efficiency.

    When building the AGV control system, we encountered that the hardware in the system does not communicate with each other because the protocols are different. So, besides safely connecting to the control room, the equipment has to avoid damage to the electronics by the magnetic stripe on the shop floor.

Cermate Solution

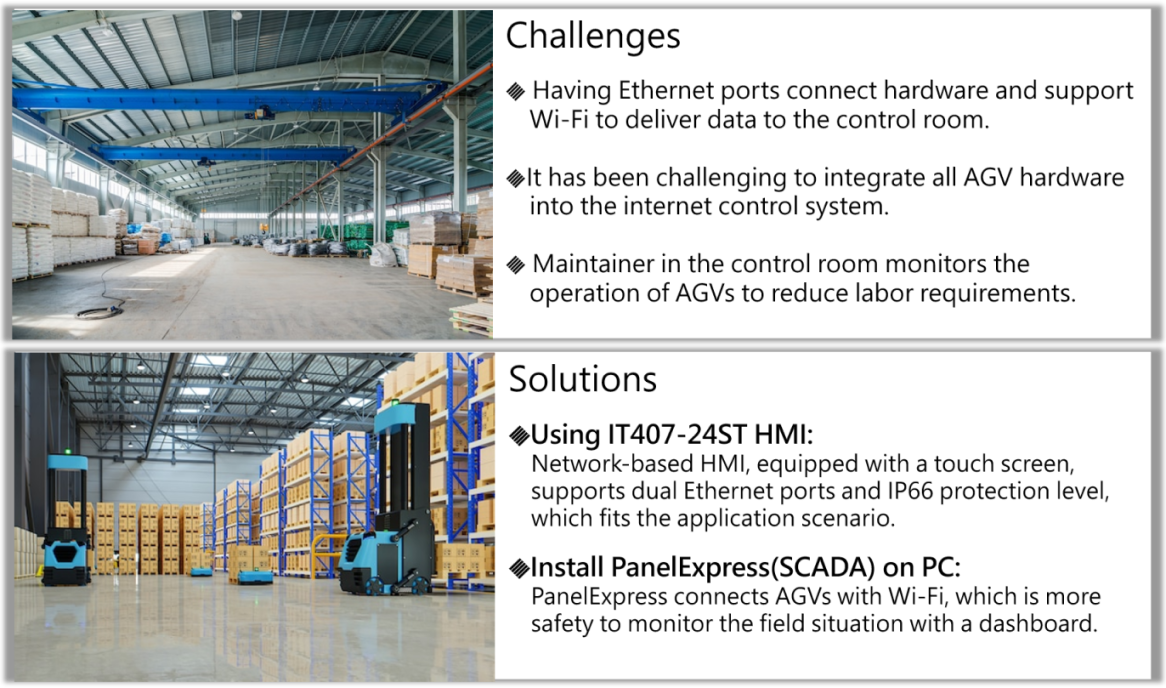

    The implementation process of AGV control system integration can be divided into hardware construction and software planning. In this situation, the hardware includes “vehicle controller," “motion controller,” and “emergency power switch.” Firstly, Cermate recommends that customers use the IT407-24ST HMI as a bridge to connect the IT site and OT site to achieve remote monitoring.

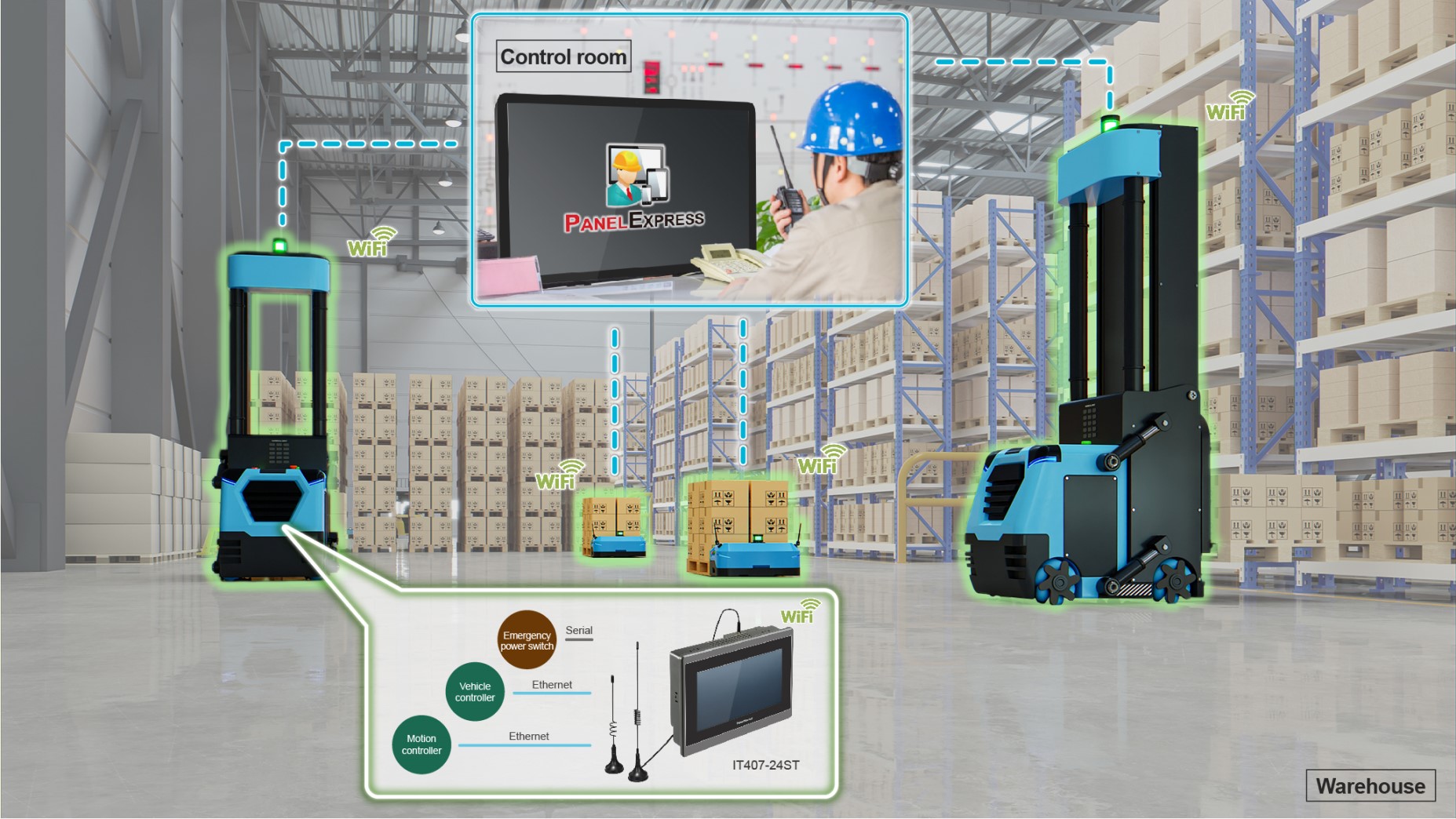

    IT407-24ST adopted a 24V DC power supply for HMI and is equipped with a touch screen; it would be more accessible to set up the AGVs. In addition, the built-in dual Ethernet ports are connected to the car controller and motion controller. Furthermore, they can connect to the serial port to emergency power switches and current switches. More importantly, IT407-24ST uses wireless network communication to help the AGVs' data be uploaded entirely to the control room without topography restriction and prevent too much wiring from blocking the AGVs running route.

HMI#PanelExpress#AGV-1

    Secondly, the customer uses PanelExpress (SCADA) as the software planning, which can realize complex graphical monitoring and select the required functions according to the field situation.

    In this case, it was helping the customer to install PanelExpress on the 2/F PC so that the maintainer could ensure the operation of AGVs. However, the data analysis on the dashboard can find whether there is equipment failure, route obstruction, power exhaustion, or work instruction error. When encountering abnormal conditions, the maintainer can use PanelExpress to solve the problems, and if it is an emergency, they can turn off the emergency power immediately. Also, the resumable upload function would temporarily store data to prevent data loss due to emergencies. Furthermore, the customer chose the digital report function instead of recording the status of AGVs in handwriting every week. They have replaced handwriting paperwork with Excel/PDF file output, which saved the processing time and ensured that the data were correct.

HMI#AGV-3

Summary :

HMI_IT407_PanelExpress

Cermate#HMI#solar_energy-1

邊緣協議閘道器:ES2系列

挑戰-

♦️逆變器工作效率異常

♦️想遠程監看逆變器狀態

"雙網口"邊緣可視化HMI:IT4系列

Cermate#HMI#solar_energy-2

"進階型"邊緣可視化HMI:PT2系列

解決方案-

♦️使用ES21-1S1A02 協議閘道器 : 使用ES21-1S1A02 協議閘道器,獲取逆變器數據。

♦️手機安裝HiH APP : 用戶安裝屏通掌控(HMI in hand)至行動裝置,用以遠程行動監看逆變器狀態。

"基本型"邊緣可視化HMI:PK2系列

Key Features :

PanelExpress

»Central dashboard presents AGVs data analysis, which is conducive to maintenance.

»Adopts safe encryption of upload equipment data to decrease the risk of disclosure or leakage of confidential information.

»Chose output Excel/PDF as an optional function, replacing daily handwritten reports, improving report accuracy.

»Synchronize the operation data of the HMI, and the data analysis presents to improve the efficiency of on-site work and decision-making.

»Support OPC client, OPC server-side.

IT407-24ST

»Support Wi-Fi wireless communication, easy data uploading.

»7.0"full-plane LCD screen and front panel IP66 compliant.

»Support for MQTT IoT Platform IoT

»Support for over 500 PLC industrial communication protocols

Product Offering :

Cermate solar_energy-HiH-ES Box

IT407 Series

IT407(L)-24ST :

HMI_IT407(L)-24

IT407(F)-24ST :

HMI_IT407(F)-24_PanelExpress

PanelExpress

Edge SCADA軟體

詳細規格請洽屏通業務

*不含遠程監控功能

Edge SCADA軟體

詳細規格請洽屏通業務

*不含遠程監控功能

Edge SCADA軟體

PanelExpress

PanelExpress

Edge SCADA軟體

詳細規格請洽屏通業務

*不含遠程監控功能

相關產品

相關產品

IT407-24

IT410-24

IT415-24

HMI ES BOX S-BOX 人機介面 智能盒 邊緣盒 PLC 資料交換技術文件下載
